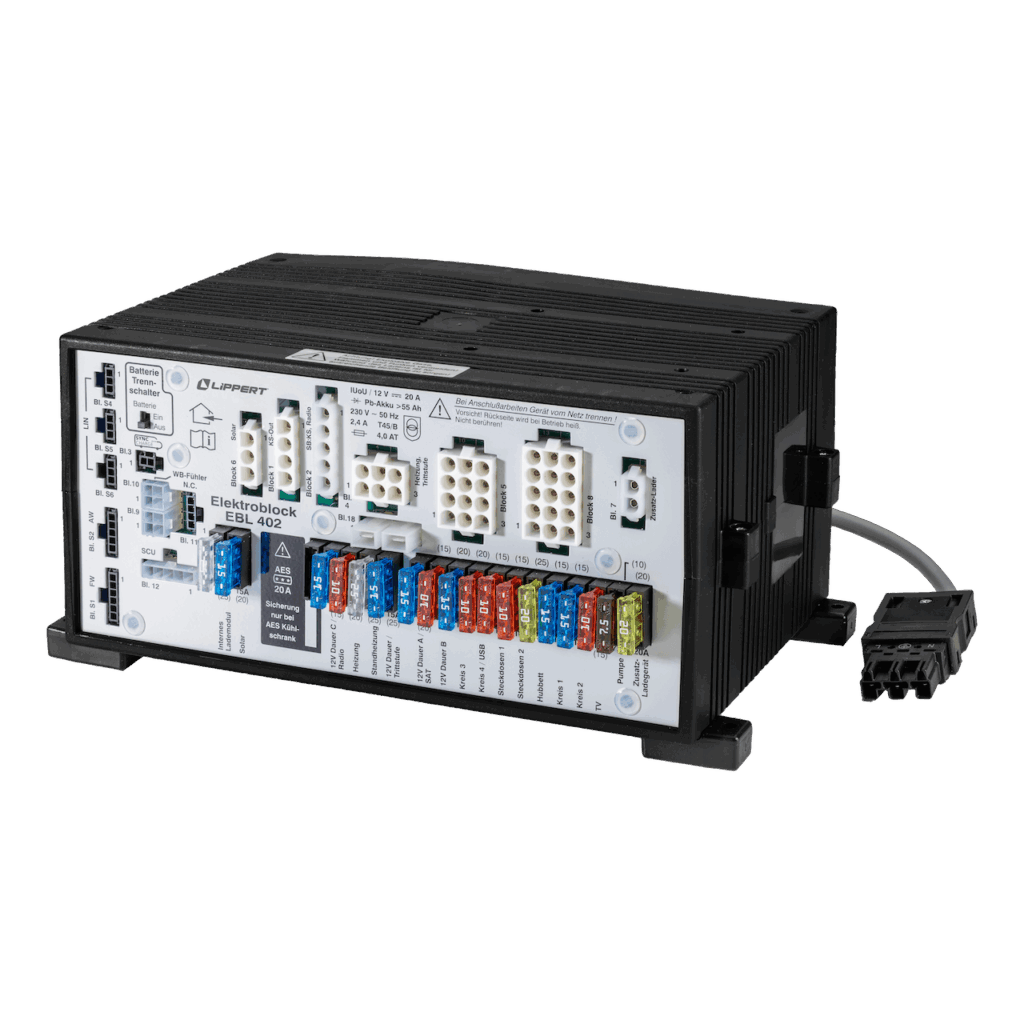

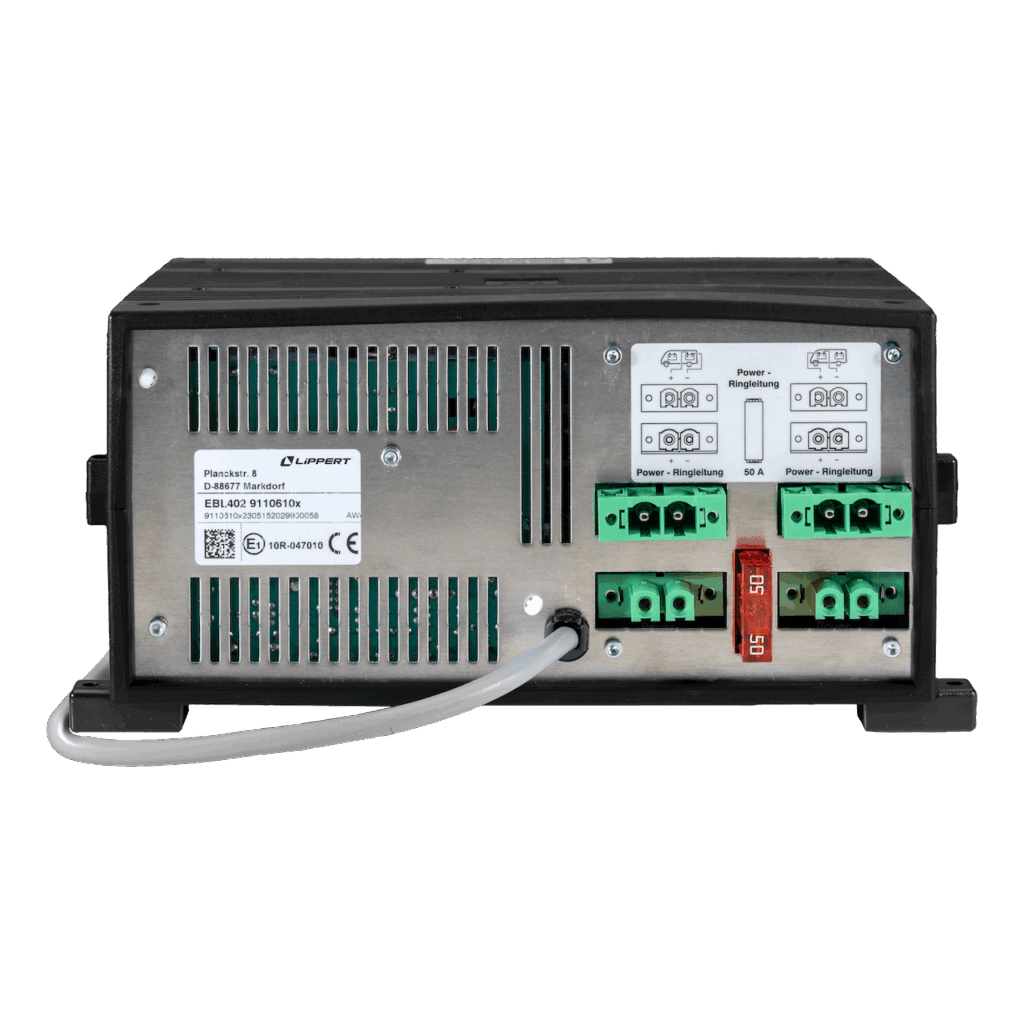

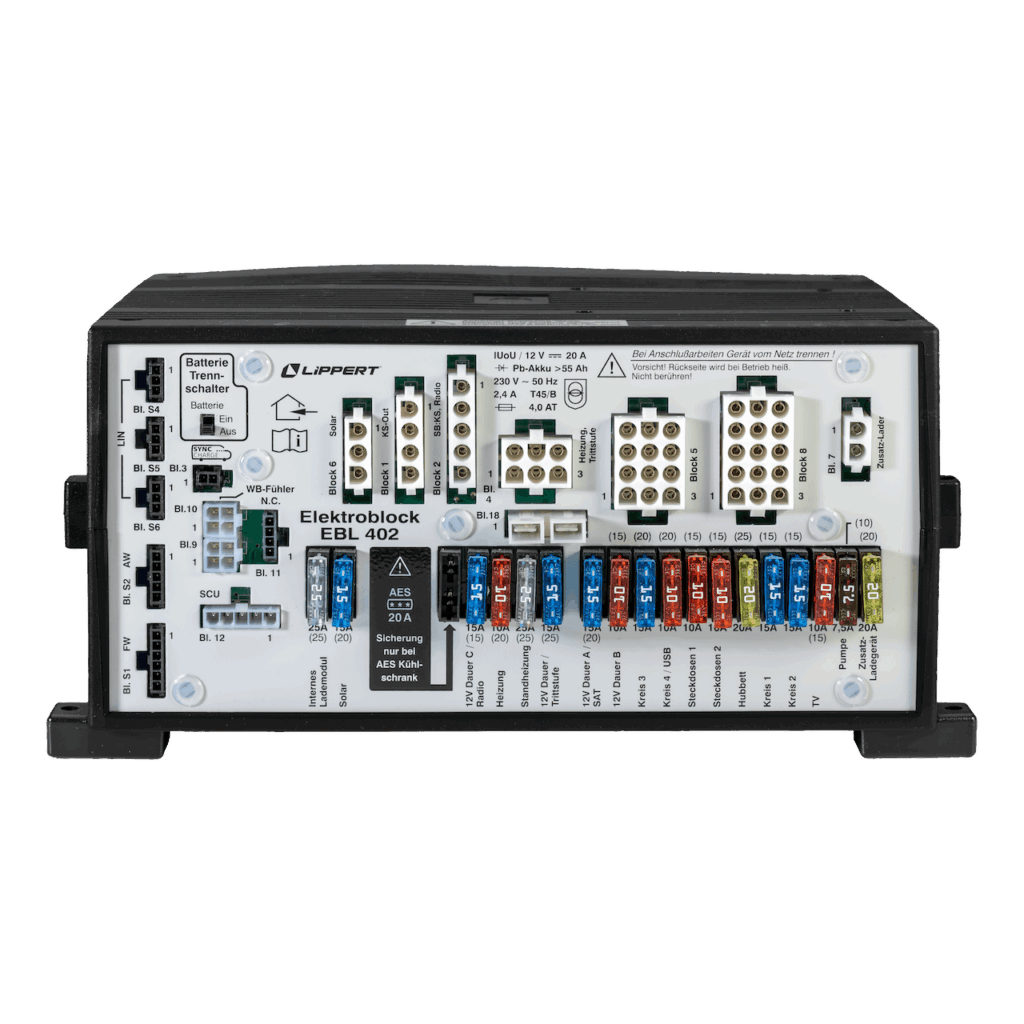

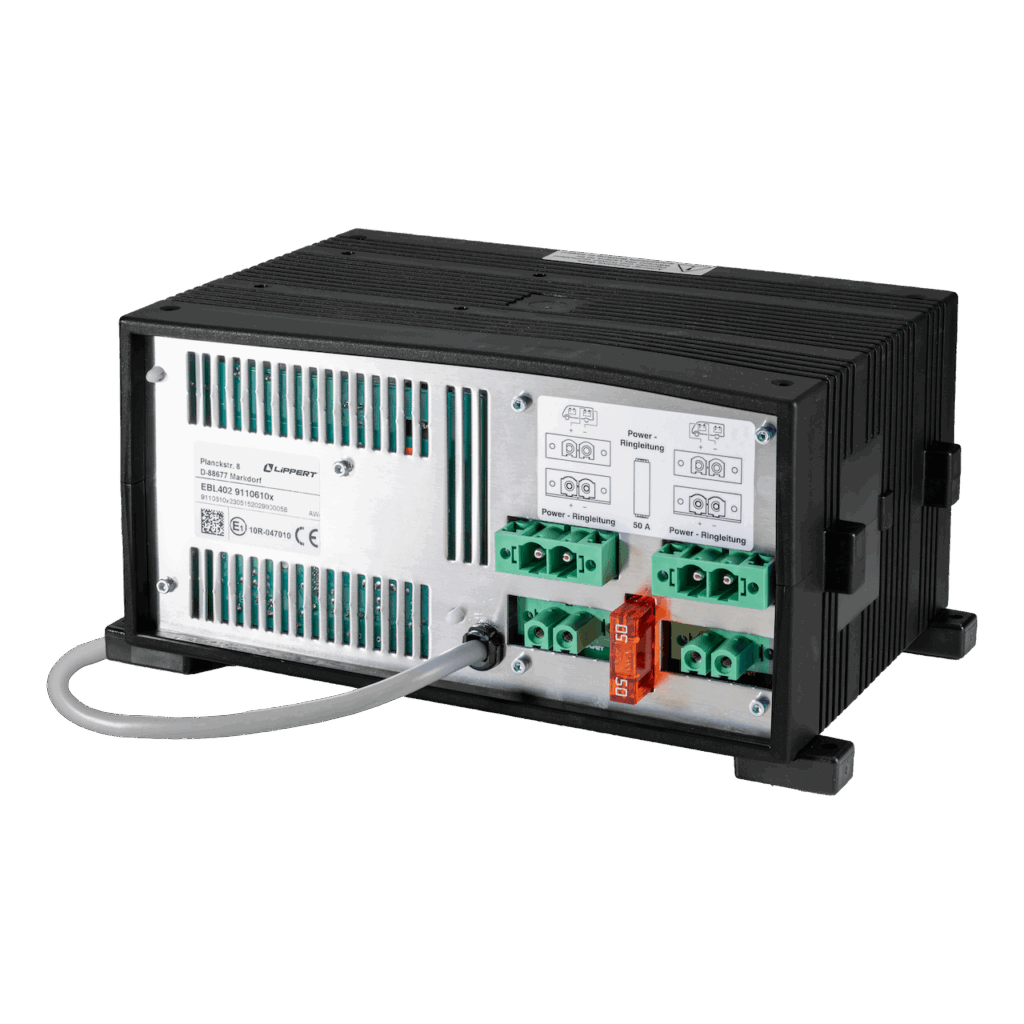

EBL 402-1

ELECTROBLOCKS | MOTORCARAVAN

The EBL 402 Electroblock Motorcaravan is a power management system designed to generate charging voltages and distribute energy across onboard batteries while protecting output circuits. Read more

Find a Dealer

Quick fact

Devices for generating charging voltages for all batteries installed in the motorcaravan (living area, starter, or auxiliary battery)
EBLs distribute and protect the output circuits
The overall supply switching is via two main switches
The living area supply on / off switch and the vehicle supply on / off switch with complete isolation of all consumers from the batteries (shutdown)
Connection facility for auxiliary chargers (18 A)
Connection facility for solar charge controller (up to 25 A charging current)
Networking of all chargers (EBL internal charger, auxiliary charger, solar charge controller) via special bus (SynCharge) for centralized control
Bus connection via LIN (CI bus)
D+ signal evaluation
Refrigerator supply (configurable) for absorber, compressor, or AES refrigerators
Low quiescent current consumption
IUoU, integrated charging output (software controlled up to seven different characteristics)
Connection of power lines and batteries via high current plugs

Product description

The EBL 402 Electroblock Motorcaravan is a power management system designed to generate charging voltages and distribute energy across onboard batteries while protecting output circuits. Featuring dual main switches with full isolation capability, it ensures safe and controlled operation. Compatible with auxiliary chargers and solar controllers via dedicated bus connections, it includes integrated IUoU charging output for reliable and efficient power management.
